Conveyor Belts

High performance conveyor belts, profiles & types ( - 20°C to 90°C ) 2mm Green, White, Rough top, FDA, PU, PVC, PVC, Jogging Conveyors from 0.8 mm to 5 mm thick, width up to 3000 mm.

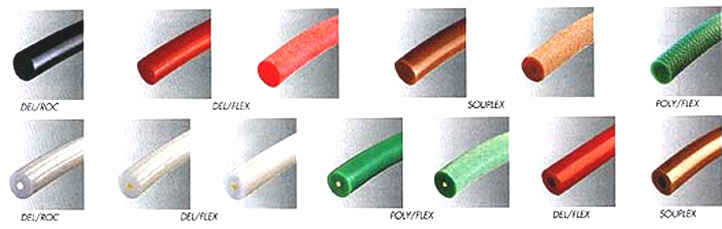

pu-belt

MEAT AND POULTRY


Nitta PVC belts have an excellent oil and grease resistance. Therefore they are widely used in processing plants for meat and poultry products. Although our Polyurethane belts are also very suitable for this industry, mostly a white or blue PVC belt will do. That is, as long as it is a Nitta belt.

Name Color FDA Shore Hardness Traction rating
Dn / cm² cross - section
Corrosponding Elongation TEMP. RANGE Abraded Surface
Steel Stainless Steel HDPE
DEL / ROC Black * 100A
55D
50
70
2
4
0,35 - 0,4 0,5 0,15 - 0,2
DEL / FLEX Red * 90A 25
38
5
8
0,5 0,6 0,25
DEL / FLEX Red * 90A 25
38
5
8
0,35 0,46 0,2 *
SOUPLEX Brown * 85A 15
24
8
10
0,6 0,7 0,35
SOUPLEX Brown * 85A 15
24
25 0,45 0,55 0,25 *
POLY / FLEX Green   85A 15 7 0,45 0,55 0,25
DEL / ROC Ivory * 100A
55D
- - 0,35 - 0,4 0,5 0,15 - 0,2
DEL / FLEX White * 90A - - 0,5 0,6 0,25
DEL / FLEX White * 90A - - 0,35 0,46 0,2
POLY / FLEX Green * 85A - - 0,6 0,7 0,35
POLY / FLEX Green * 85A - - 0,45 0,55 0,25 *
DEL / FLEX Red * 90A 25 5 0,5 0,6 0,25
SOUPLEX Brown * 85A 15 8 0,6 0,7 0,35


These values are given for ambient temperature between -30°C to 30°C. The max. operating tempreture is 90°C for DEL / ROC belts, intermittent up to 100°C, 110°C if there is very little load onthe belts, and 70°C for DEL / Flex belts. A temprerature grater than 30°C reduces traction ratings given above; take safety coefficient or carry out a sample trial in situ.


Profile Conveyor Belts



sidewall cleated pvc convyor belt


Profiled Conveyor Belt with change of Slope

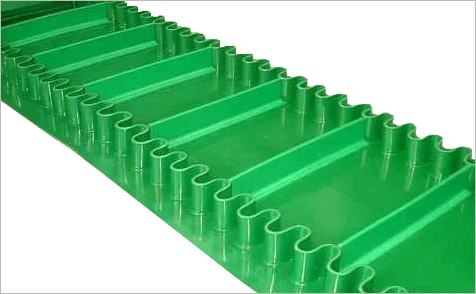

side wall conveyor & cleated conveyor


Side Wall Conveyor and Cleated Conveyor




Side Wall Cleated Conveyor



Side Wall Cleated Conveyor




Side Wall Cleated Conveyor

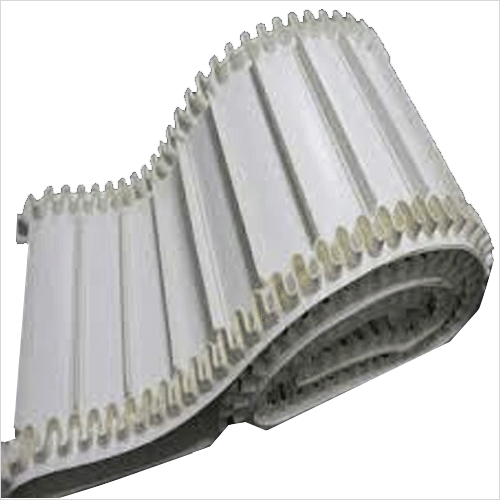

Sidewall-Cleateuyd-Conveyor-Belts




Side Wall Cleated Conveyor

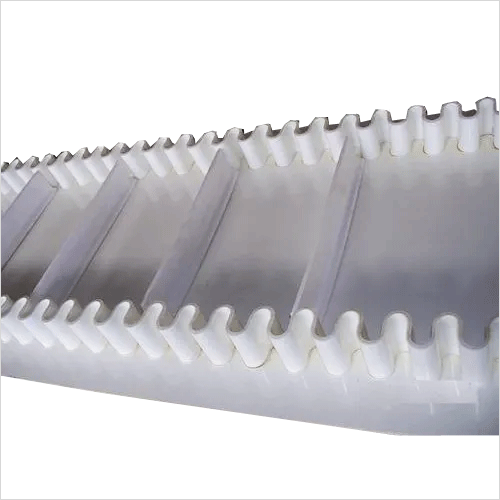

side-wall-conveyor-and-cleated-conveyor-white




Side Wall Cleated Conveyor

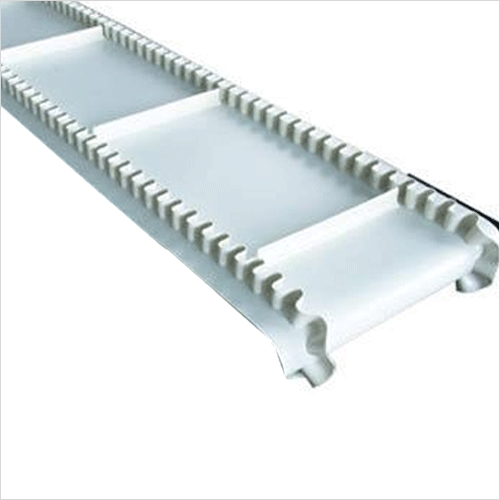

Sidewall-Cleated-Conveyor-white-Belts
